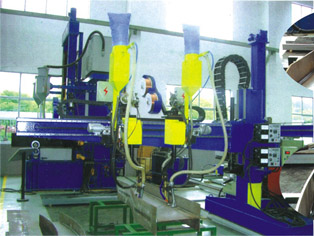

Variable Section Welding Machine







+With reliablemotor autotracking arc-guide device.
+Assembling and welding .

+Adopted with double wire and single arc welding of Lincoln.
+ Weld variable section Hbeam
steel such as arc type, trapezoid and automobile beam.





Main parameters  200-1200mm Right-left strok 1250mm
Width of the variable-section beam  100-500mm Welding velocity 0.15-3m
Height of the beam section 100-500mm Motor power  2×0.4kw
Length of the beam section 15000mm Upper and lower arc-guide cylinder  100mm
Thickness of the beam section  6-25mm Pressure from the gas supply  0.2-0.8MPa
Upper and lower stroke 500mm 　
