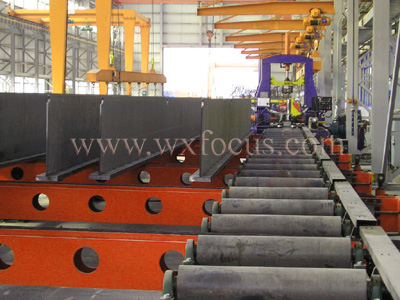

The assembling welding & straightening integrative machine has advantages like small space, multi-function and high efficiency and it integrated assembling, welding and straightening working together to avoid exchanging the procedure. In order to improve the efficiency and meet the needs, automatic welding can be changed to automatic oriented spot-welding to improve the assembling efficiency of the T beam. After finishing, weld together in bulk. This machine integrated several functions.
Two parts realize the orientation of the panel and web plate of this machine. In the input feeding roller, there are several sets of centering organs, automatically pre-orienting the panel and web plate. Inside the main machine there is a series of orientation clamping device. First is the manual single-side link orientation, the purpose of which is to avoid all kinds of troubles during production because there is dimension mistake in workpiece roughcast. The Hualian assembling machine adopts international popular methods, which are one side orienting and the other side clamping with hydraulic. As we use control valve shut in the middle, it has the float function after clamping, which can ensure the quality of the products. The up-pressing wheel and main driving roller of the machine are of the same height, which is good for web plate clinging on the panel. Before pressing roller there is a supporting wheel to support the panel to stick with the web plate if the panel is not smooth. As a result, the welding spot can be tightly clung together.
The drive device of the machine is AC frequency conversion timing. The advantage is that constant torque and power controlling can reduce electricity consuming and have more choice to change speed.
Characteristics:
++Realize the assembling and welding of the centering and non-centering T beam.
++Assembling, welding and straightening integrated, automatic welding and automatic spot-welding exchanged and straightening gets floating function.
++Welding torch orientation device can follow the float-welding gap.
++It can weld with single or double thread and dust catcher to clean dust.
++The control system can store 1-50 welding craftwork parameters that can be used at any time according to different parameter.
++Centralized control gas shielded welding machine AC and voltage and each welding machine has the function of inching.
Technical performance parameter
Suitable dimension: height of web plate: 200—800mm
thickness of web plate: 10—20mm
length of web plate: 4000—12000mm
width of panel: 100—300mm
thickness of panel:15—30mm
panel length: 4000—12000mm
Welding speed: 300—2000mm/min
Assembling speed: 500—6000mm/min
Web plate orientation: decelerator linkage
Wing plate clamping: hydraulic clamping
Control: PLC control
Speed: stepless timing
Machine power: 7 KW
Electric welding power: 28 KW (automatic spot-welding)
Total power: 35 KW
Power supply: AC 80V 50HZ 3 Phrase
Outline dimension (length*width*height): 3900*2600*3920mm

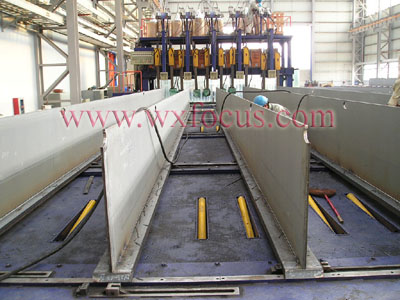

T beam automatic welding machine is developed to weld T beam production line by Hualian itself, based on taking advantages of both the domestic and oversea products, according to the market. It is mainly used in T beam multi-tips gas shielded welding, especially the large scale one. The machine is compactly structured and convenient to operate.
This machine adopts bilateral drive, mainly composed by drive moving organ, frame, 3 sets of column transverse moving organ, column-elevating organ, guiding arc gas horizontal moving organ, guiding arc up and down, guiding arc organ, automatic welding system and electric operation system etc. This machine drags the trolley moving with FC motor driving system to make guiding arc organ move stably. There are two symmetry guiding arc organs, which force the guiding arc moving along the welding line with the upper gas cylinder and up-down spring. The column adjusts in a larger range, while the guiding arc micro-adjusts when welding by gas cylinder and spring. Elevating organ and horizontal moving organ can be operated easily and the welding efficiency is high.
Characteristic:
A: 3 assembled T beams double-face welding at the same time
B: The control system can store 1-50 welding craftwork parameters that can be used at any time according to different parameter.
C: 12 sets of centralized control gas shielded welding machine AC and voltage and each welding machine has the function of inching.
D: 12 sets of CO2 supplied concentrated and uniformly managed.
E: This equipment can welding with single thread or double arcs and threads; the welding seam tails in two methods, which are mechanic guiding and electric tracker automatically tailing.
|
