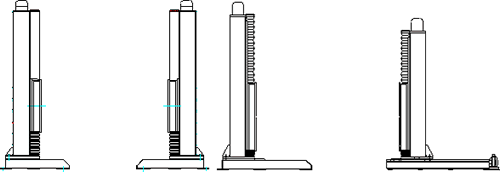

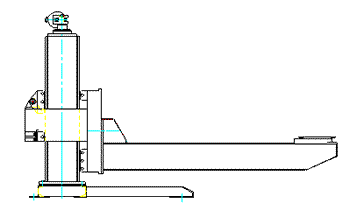

custombuilt welding positoner(2)



type

capacity

lift speed

 output Nm

 rotation speed

rotation angle

HT10

10kN

1000mm/min

2kNm

4r/min

360degree*n

HT20

20kN

1000mm/min

4kNm

3r/min

360degree*n

HT30

30kN

1000mm/min

6kNm

2r/min

360degree*n

HT40

40kN

1000mm/min

12kNm

2r/min

360degree*n

HT60

60kN

1000mm/min

18kNm

1.5r/min

360degree*n

HT80

80kN

1000mm/min

24kNm

1.5r/min

360degree*n





type

capacity

lift speed

    output

speed

angle

LHB8

8 kN

1000mm/min

2.4/2.4 kNm

4.0/4.0r/min

360degree*n

LHB15

15 kN

1000mm/min

4.5/4.5 kNm

3.0/3.0r/min

360degree*n

LHB20

20 kN

1000mm/min

6.0/6.0 kNm

2.0/2.0r/min

360degree*n

LHB25

25 kN

1000mm/min

7.5/7.5 kNm

2.0/2.0r/min

360degree*n
