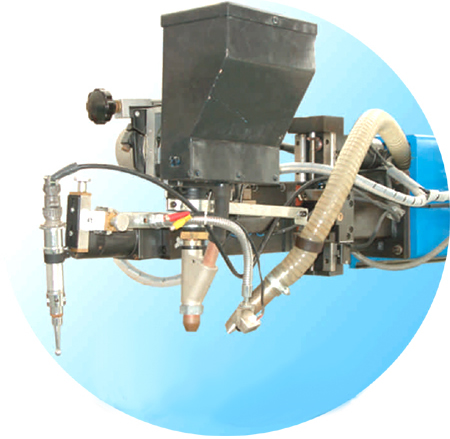

PRECISION WELDING SEAM TRACKER





+Tracking  welding seam  in real time, being propitious to becoming the standard seam

+Provided with the function of inspecting the seam tail end , of inspecting anchor point , and can set the welding to complete time

+All functions are control by the procedure, the procedure parameter can 能input by actual work piece

+The accuracy is high and responds to the speed quick, the function is well-found, being applicable to various welding method and weld the form

+ Easy to integrate existing manual or automatic welding equipments .




 FORM

SPEC

HMG-5

HMG-10

HMG-20

LOADED WEIGHT

25Kg

50kg

100kg

MONITORING RANGE

100mm

200mm

200mm

MONITORING SPOEED

250mm/min

250mm/min

200mm/min

ACCURACY

±0.25mm

WEIGHT OF SLIDE X-Y

14kg

18kg

29kg

METHOD OF WELDING TO APPLY

MIG.CO2 TIG

SUB Arc

TAN DEM
