multi arc welding machine

This production line is a kind of professional one used to produce T beam production line with high efficiency, on which there are assistant equipment such as chamfering machine, plate shelf, plate turning rack, plate centering device, web shelf, web turning & centering device, T beam assembling welding & straightening integrative machine, T beam parallel steel conveyer, feeding roller etc. These machines realized the automatization of T beam assembling procedure. The plate is input on the roller in front of the chamfering machine under the effection of the automatic feeding organ, and then it is put in the assembling welding & straightening integrative machine in front of the chamfering machine by four-angle chamfering machine. The plate shows centering or eccentricity through centering device. The web automatically stands and centers under the effection of the automatic feeding organ and assembles, welds and straightens by assembling welding & straightening machine. The finished T production line stores material by the parallel conveyer. Every day one shift can produce 15 sets of T beam production lines of 12 meters, which greatly improves producing efficiency but reduces the labor intensity. (The line has got several domestic patents)

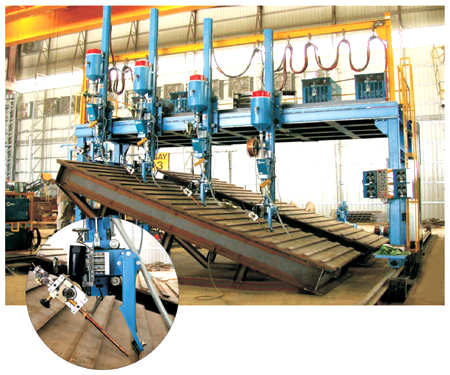

T beam automatic welding machine is developed to weld T beam production line by Hualian itself, based on taking advantages of both the domestic and oversea products, according to the market. It is mainly used in T beam multi-tips gas shielded welding, especially the large scale one. The machine is compactly structured and convenient to operate.

This machine adopts bilateral drive, mainly composed by drive moving organ, frame, 3 sets of column transverse moving organ, column-elevating organ, guiding arc gas horizontal moving organ, guiding arc up and down, guiding arc organ, automatic welding system and electric operation system etc. This machine drags the trolley moving with FC motor driving system to make guiding arc organ move stably. There are two symmetry guiding arc organs, which force the guiding arc moving along the welding line with the upper gas cylinder and up-down spring. The column adjusts in a larger range, while the guiding arc micro-adjusts when welding by gas cylinder and spring. Elevating organ and horizontal moving organ can be operated easily and the welding efficiency is high.

Characteristic:

A: 3 assembled T beams double-face welding at the same time

B: The control system can store 1-50 welding craftwork parameters that can be used at any time according to different parameter.

C: 12 sets of centralized control gas shielded welding machine AC and voltage and each welding machine has the function of inching.

D: 12 sets of CO₂ supplied concentrated and uniformly managed.

E: This equipment can welding with single thread or double arcs and threads; the welding seam tails in two methods, which are mechanic guiding and electric tracker automatically tailing.

F: To protect the worker, add the dust catcher to clean the 12-tip welding torch.
